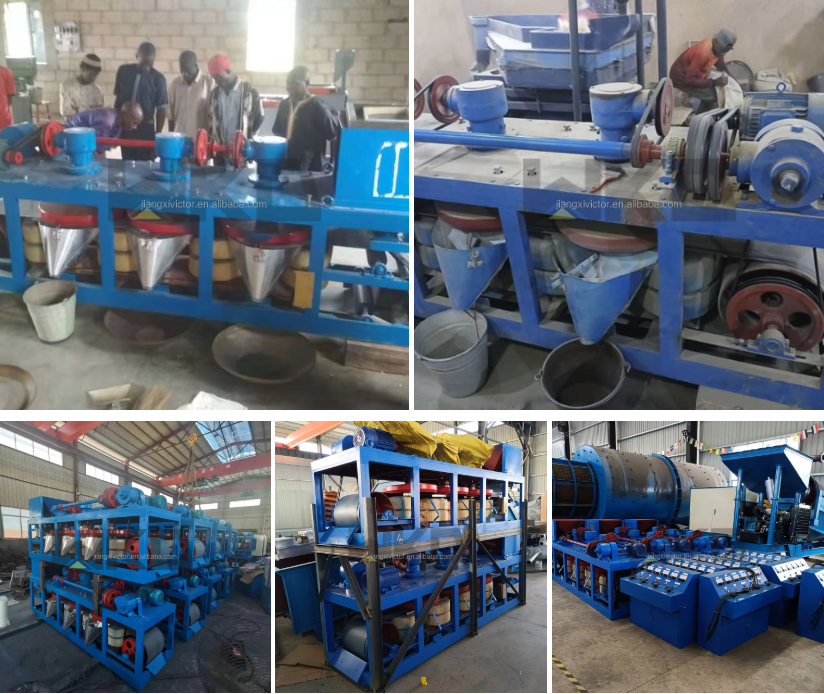

Three-disc Electromagnetic Separator is a Dry Intensified Magnetic Separator/High Intensity Magnetic Separator, applicable for separations of tin, tungsten, tantalum-niobium, ilmenite, rare earth ore, chromite ores, limonite, columbium, zircon, rutile,monazite, andalusite, garnet, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in nonmetallic minerals.It can separate 4 different minerals in one time.
Three-disc electromagnetic separator (also konwn as high Intensity Disc Magnetic Separators, also known as Electro-Magnetic Disc Separators, (3) Three Disc Magnetic Separators, Three Disc Dry Magnetic Separators) is a highly efficient device for separation of difficult minerals with various different degree of difference in their magnetic susceptibilities, to produce very fine selectively achieved clean magnetic fractions with highest recovery. sorting mineral size less than 2-3mm of weakly magnetic minerals and rare metal ore selection, it is a very important mineral processing equipment.
Advantages.
1. Very high magnetic field intensity 16000gauss - 20000gauss
2. This separator can separate four different minerals in one time.
3. This separator can get the final concentrate of three to four mineral.
4. Ta & Nb grade can reach 60% by using this separator.
5. it's easy to install, adjust, and operate.
6. The magnetic intensity of each disc is adjustable from 1000-20000 gauss, could be used for other mineral concentration.
