Dewatering Screen Product Description
The dewatering screen, also known as a high-frequency vibrating screen, is a specialized equipment designed for mineral classification, tailings dry discharge, and finished product dewatering processes. In beneficiation workflows, it is widely used in closed-circuit circulation systems following ball mills. The undersize material proceeds to the next stage, while the oversize material returns to the ball mill for regrinding, thereby enhancing production efficiency. In tailings dry discharge applications, the dewatering screen can be used in conjunction with filter presses to perform pre-dewatering, reducing the load on subsequent processes and cutting operational costs by over 50%. Additionally, it is suitable for dewatering finished mineral products.
Dewatering Screen Advantages
1.High dewatering efficiency, excellent screening performance, large processing capacity, and compact structure.
2.Screen mesh made of high-molecular polyurethane, offering impact resistance, low-temperature tolerance, wear resistance, and chemical corrosion resistance.
3.Reasonable structural design with low noise levels and robust durability.

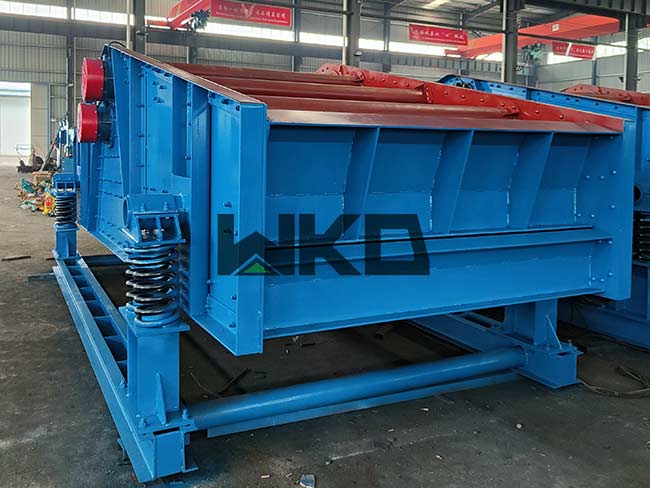

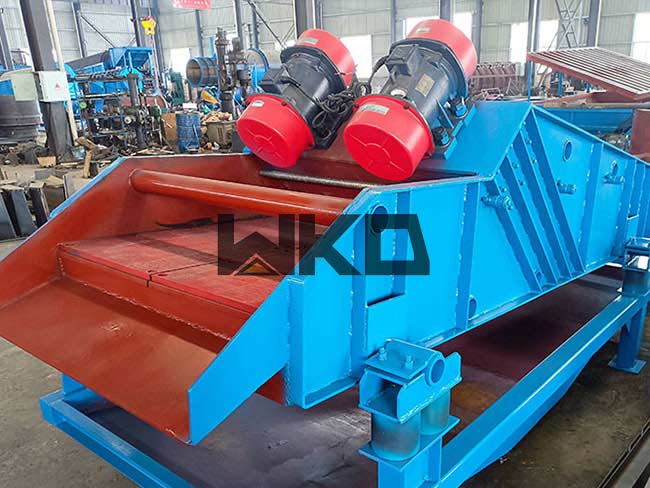

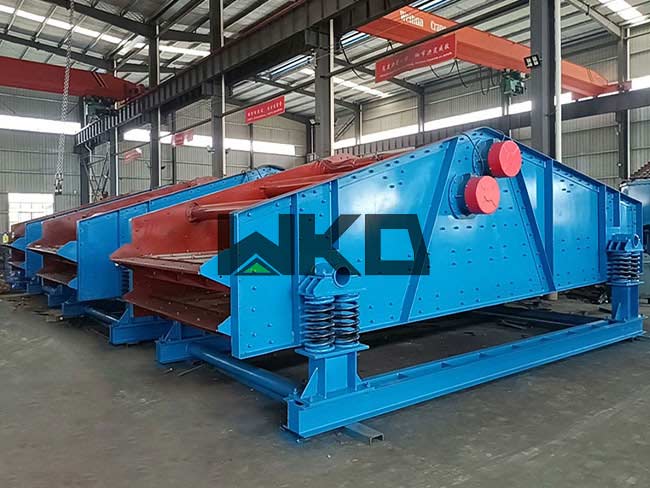

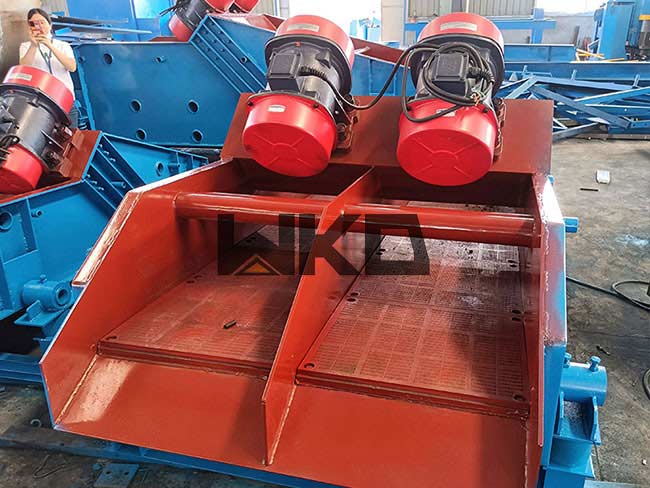

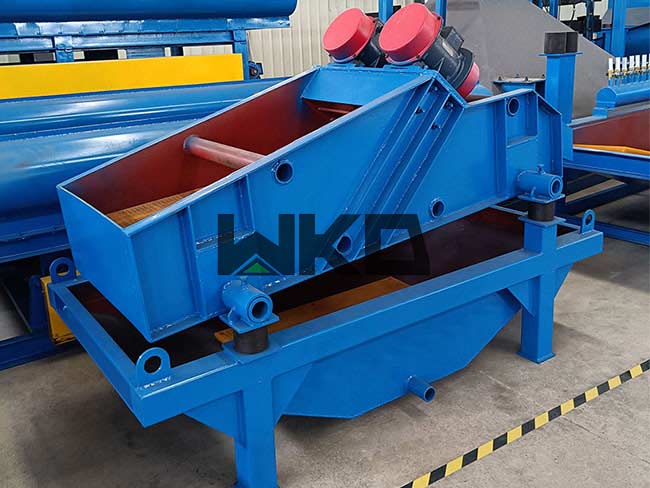

Dewatering Screen Picture
Dewatering Screen Main Technical Parameters
Model No | Screen Area (m²) | Power (kw) | Capacity (m³/h) | Feeding Size (mm) | Weight (t) | Dimension(mm) |
TS0820 | 1.5 | 2*0.75 | 5-10 | ≤10 | 0.8 | 2220*1140*1140 |
TS1020 | 2 | 2*1.5 | 20-30 | ≤10 | 1.6 | 2220*1340*1190 |
TS1225 | 3 | 2*2.2 | 50-80 | ≤10 | 2.1 | 2820*1570*1370 |
TS1530 | 4.5 | 2*3 | 100-120 | ≤10 | 3.2 | 3320*1880*1350 |
