Pyrite is an important mineral resource widely used in chemical, metallurgical, and other fields. To enhance the grade and recovery rate of pyrite, an appropriate mineral processing flow is essential. This article introduces the typical pyrite beneficiation process, utilizing equipment such as jaw crushers, roll crushers, and sawtooth wave jigs.
I. Jaw Crusher
Run-of-mine pyrite ore typically has a large particle size and requires primary crushing. The jaw crusher, known for its strong crushing capacity and stable performance, is an ideal choice for the coarse crushing stage. Through the squeezing action of the movable and fixed jaws, large pyrite lumps are crushed to a medium particle size (approximately 50-150 mm), preparing the material for subsequent fine crushing.
II. Roll Crusher
After coarse crushing, the pyrite needs further reduction to a smaller particle size (typically 5-20 mm) to meet the feed requirements of subsequent beneficiation equipment like jigs. The roll crusher utilizes the principle of dual-roller compression crushing, offering a suitable reduction ratio and effectively avoiding over-crushing. This ensures a uniform particle size distribution of the pyrite, improving the efficiency of subsequent separation.

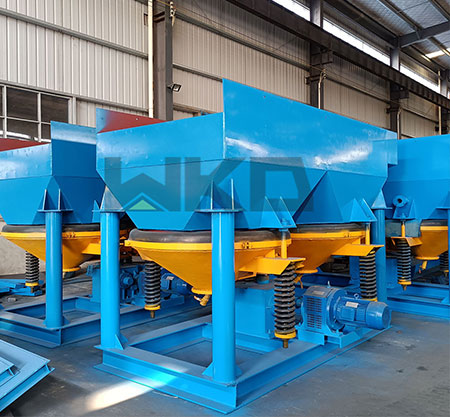

III. Sawtooth Wave Jig
The crushed pyrite is then fed into a sawtooth wave jig for gravity separation. The jig utilizes pulsating water flow to stratify mineral particles based on density: high-density pyrite particles settle at the bottom, while low-density gangue minerals are carried away by the water flow. By adjusting parameters such as stroke and frequency, the separation efficiency can be optimized to obtain a high-grade pyrite concentrate.
The pyrite mineral processing flow primarily consists of two main stages: crushing and separation. The jaw crusher handles coarse crushing, the roll crusher performs intermediate and fine crushing, and the jig achieves efficient enrichment of pyrite through gravity separation.
