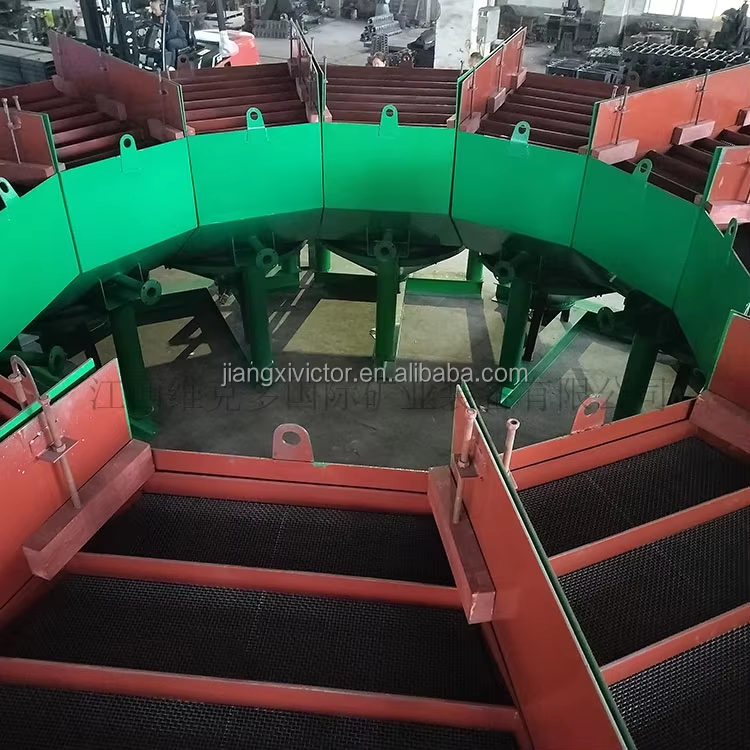

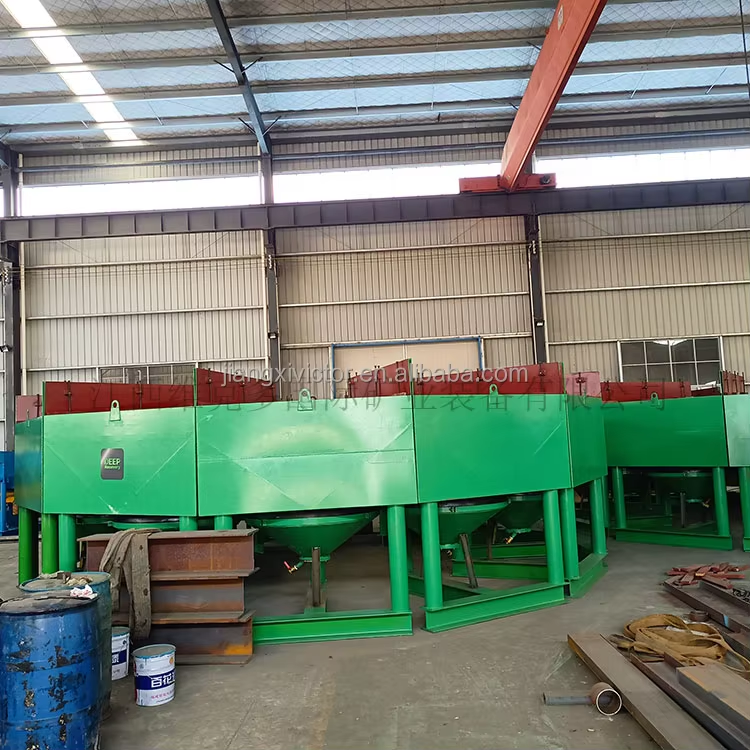

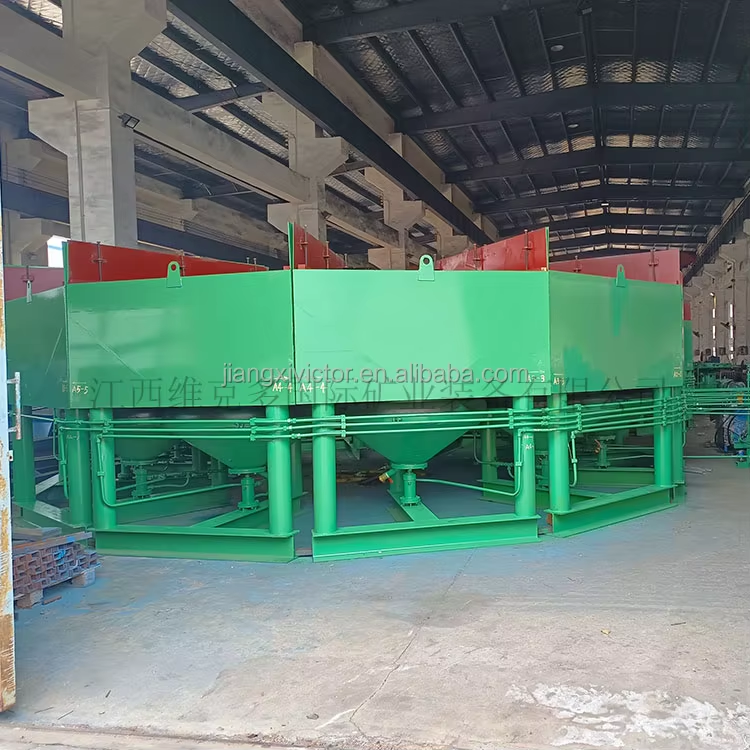

Hydraulic radial jig has been widely used as roughing separation equipment to select ore such as alluvial gold, tin, diamond, tungsten, manganese and hematite.
Hydraulic radial jig is developed from circular jig. It’s composed of two parts: drive and tank. The drive is mechanical hydraulic type, the power is provided by motor through the transmission mechanism let the output shaft of the gear reducer drives the cam rotation, the cam pushes the piston of each master cylinder make periodic reciprocating motion, which converts electrical energy into mechanical energy and then into hydraulic energy. Through hydraulic pipes and all kinds of valves let the moving cylinder drives the cone of jig up and down fluctuation.
FEATURES
1.High capacity
2.High concentration ratio and high recovery
3.Fabricated with highest quality material
4.Easy to install, operate and maintain
5.Long working life
6.The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
7.Saving water 30-40% than ordinary jig
8.The pulsation speed very easy adjusted by regulator
9.Suitable for roughing and desliming
10.Can achieve a good result
PRODUCT SPECIFICATIONS
