Spiral Chute Product Description
The Spiral Chute is constructed from durable fiberglass, providing exceptional wear resistance and an extended operational lifespan. It delivers high processing capacity and operates entirely without external power.
The Spiral Chute is specifically designed for the separation of fine-grained materials in the size range of 0.30 to 0.02 millimeters. It is highly effective in processing a wide variety of minerals, including iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphorite, tungsten ore, tin ore, tantalum ore, niobium ore, and other non-ferrous metals, rare metals, and non-metallic minerals with significant specific gravity differences.
Spiral Chute Advantages
1.spiral chute built with robust fiberglass for outstanding wear resistance, ensuring long service life and high processing capacity.
2.spiral chute requires no external power, significantly reducing energy consumption and operational costs.
3.The spiral chute is highly effective for separating a wide range of fine-grained minerals (0.30-0.02mm) based on specific gravity.
4.Versatile in processing various metal and non-metal minerals, including rare and non-ferrous metals.
5.Simple structure and power-free operation minimize maintenance needs and downtime.

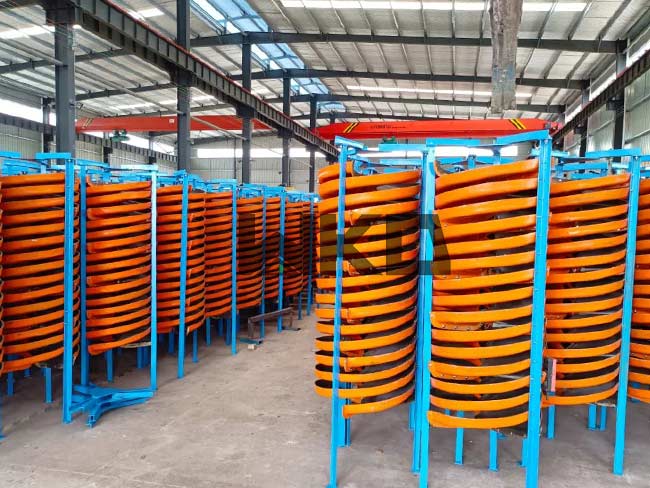

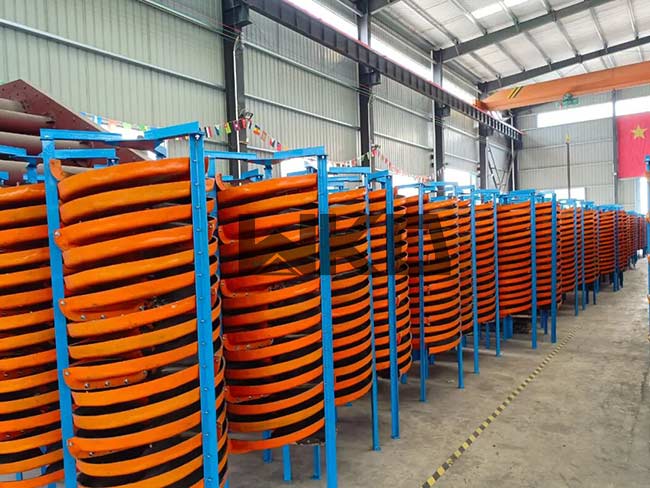

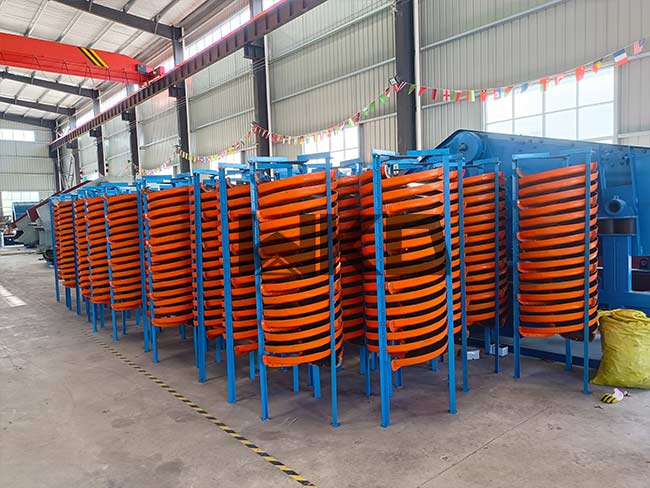

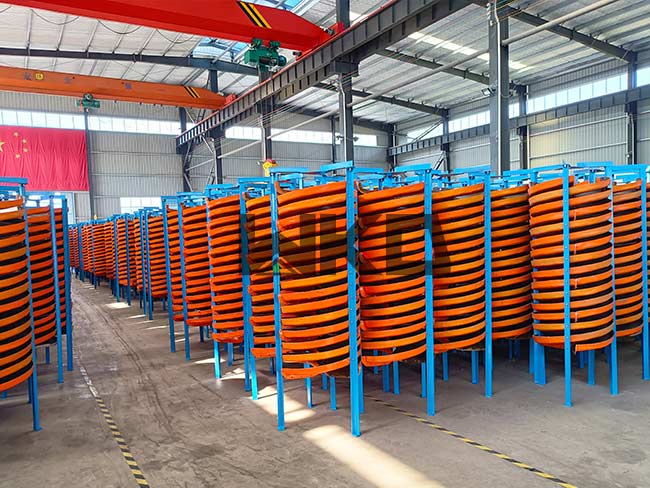

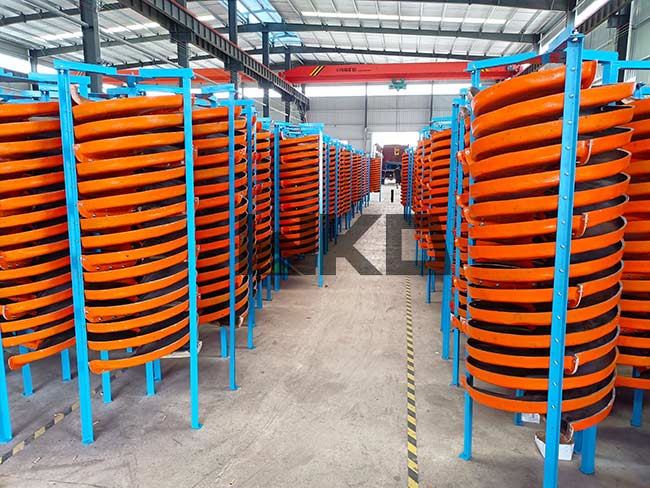

Spiral Chute Picture






Spiral Chute Technical Parameters
| Model | 5LL-2000 | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 |
| Spiral Diameter(mm) | 2000 | 1500 | 1200 | 900 | 600 | 400 |
| Spiral Pitch(mm) | 1200 | 800/680/540 | 720/540/360 | 660/540/400 | 450/360/270 | 240/180 |
| Starts | 3 | 4 | 4 | 4 | 2 | 2 |
| Feeding Size(mm) | 4-0.04 | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 |
| Feeding Denstiy(%) | 20-45 | 30-60 | 25-35 | 25-55 | 25-55 | 25-55 |
| Capacity(t/h) | 15-40 | 6-8 | 4-6 | 2-3 | 0.4-0.8 | 0.15-0.2 |
| Lenth(mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 |
| Width(mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 |
| Height(mm) | 6500 | 5230 | 5230 | 4000 | 2600 | 1500 |
| Weight(kg) | 1100 | 800 | 600 | 400 | 150 | 50 |
